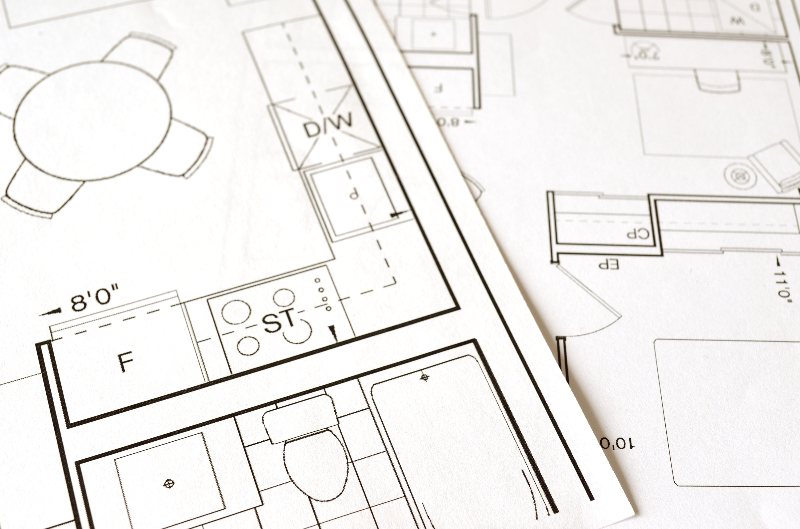

건축도면 주요 용어(약어)



A.
AB	Anchor Bolt	앵커 볼트
AC	Air Conditioner	에어컨
AL	Aluminium
AW	Aluminium Window
AD	Air Duct, Aluminium Door, Automatic Door
AP	Access Pannel
ASPH	Asphalt	아스팔트
B.
B	Bath	욕실
B, BM	Beam	빔
BD	Board
BLDG	Building
BLK	Block
BRK	Brick
BLT	Bolt
B.P	Base plate
B.S	Both side
BSMT	Basement
B.M	Bench mark, Bench Marking	기준점
C.
CH	Chimney	굴뚝
CL	Closet
CLG	Ceiling
CLKG	Coulking	코킹
CLR	Clearance, clear
COL	Column
CONC	Concrete
CORR	Corridor
C. PLAS	Concrete Plaster
CONTR. JT	Construction Joint
C TO C	Center to Center	중심간
D.
D	Diameter	직경
DET	Detail	상세도
DIA	Diameter	지름
DIM	Dimension	치수
DN	Down
DP	Damp Proofing	방습
DR	Door, Drain
E.
EA	Each
ECB	Exposed Concrete Block	노출 콘크리트 블록
ED	Electrical Duct	전기 덕트
EJ	Expansion Joint	신축 이음
EL, ELEV	Elevation	표고
ELEC	Electrical
ELEV	Elevator	엘리베이터
ENT	Entrance	현관
EXP	Expansion, Exposed	노출
EXT	Exterior	외부
F.
F	Fixed	고정, 고정창
F	Footing	기초
FD	Floor Drain	바닥 배수구
F. DR	Fire Door	방화문
FL	Floor, Floor Level
FDN	Foundation	기초
FB	Foundation Beam	기초보
FG	Footing Girder	지중보
FIN	Finished
FR	Frame	프레임
G.
G	Girder	큰 보, 대들보
GALV	Galvanized	도금
GB	Grade Beam	지중보
GL	Ground Level	지반고
GYP	Gypsum	석고
H
H	height, H-beam
HDR	High Damping Rubber	고감쇠 고무받침
I.
INS	Insulation	단열재
INT	Interior	인테리어
J.
JT	Joint
K.
K, KIT	Kitchen	키친, 부엌
K. PL	Kick Plate	발 빠짐 방지 철판
L.
LAV	Lavatory	실험실
LDK	Living + Dining + Kitchen
LIV	Living Room	거실
LTR	Lighting
LVR	Louvers
M.
MAR	Marble	대리석
MECH	Mechanical	기계
MEZZ	Mezzanine
MH	Menhole
MO	Masonry Opening	구체 개구부
N.
NS	Non-Slip	논슬립
O.
OP	Oil Paint
OPEN, OPNG	Opening	개구부
P.
P	Parking
PC	Precast
PCB	Precast Cement Base
PD	Pipe Duct, Plastic Door
PLAS	Plaster
PL	Plate
PS	Pipe Shaft
PT	Precast Terrazzo
PTB	Precast Terrazzo Base
PW	Plastic Window
PWD	Ply Wood
R.
RC	Reinforced Concrete
RD	Roof Drain
RF	Roof	지붕
RM	Room
RWP	Rain Water Pipe
S.
S, SC	Scale	축척
S	Slab	슬라브
SD	Steel Door	스틸 도어
SECT	Section	단면
SHT	Sheet
SPEC	Specification
SS, SST	Stainless Steel
SSD	Stainless Steel Door
SS	Steel Shutter
ST, STL	Steel
ST	Stair	계단
STR	Structural
SYM	Symbol
T.
T	Toilet	화장실
TEMP	Temperature
TER	Terrazzo	테라조
THK	Thickness	두께
TOC	Top of concrete
TYP	Typical
U.
UT	Utility
V.
VAR	Vaiable	현장에 맞춰 가변 제작
VENT	Ventilator, Ventilation	통풍, 환기
VERT	Vertical
VP	Vinyl Paint, Vanish Paint
W.
W	Wall
W	Width	폭
WC	Water Closet	화장실
WD	Wood Door
WF	Wall Footing	줄기초
WW	Wood Window	목재창
